Dasqua Higher Precision Dial Bore Gauge - 0.001mm / 0.0001" Resolution Internal Measuring Tool - Dasqua - SKU: 5511-1130

NEW BESTSELLER FEATURED

Dasqua Higher Precision Dial Bore Gauge - 0.001mm / 0.0001" Resolution Internal Measuring Tool

Name: Dasqua Higher Precision Dial Bore Gauge - 0.001mm / 0.0001" Resolution Internal Measuring Tool
Brand: Dasqua
SKU: 5511-1130
Availability: InStock

Brand: Dasqua

SKU: 5511-1130

Price on Request

Available in Saudi Arabia Delivery Time: : 2-3 weeks

Wishlist

Facebook Twitter LinkedIn WhatsApp

Chat on WhatsApp

Product Overview

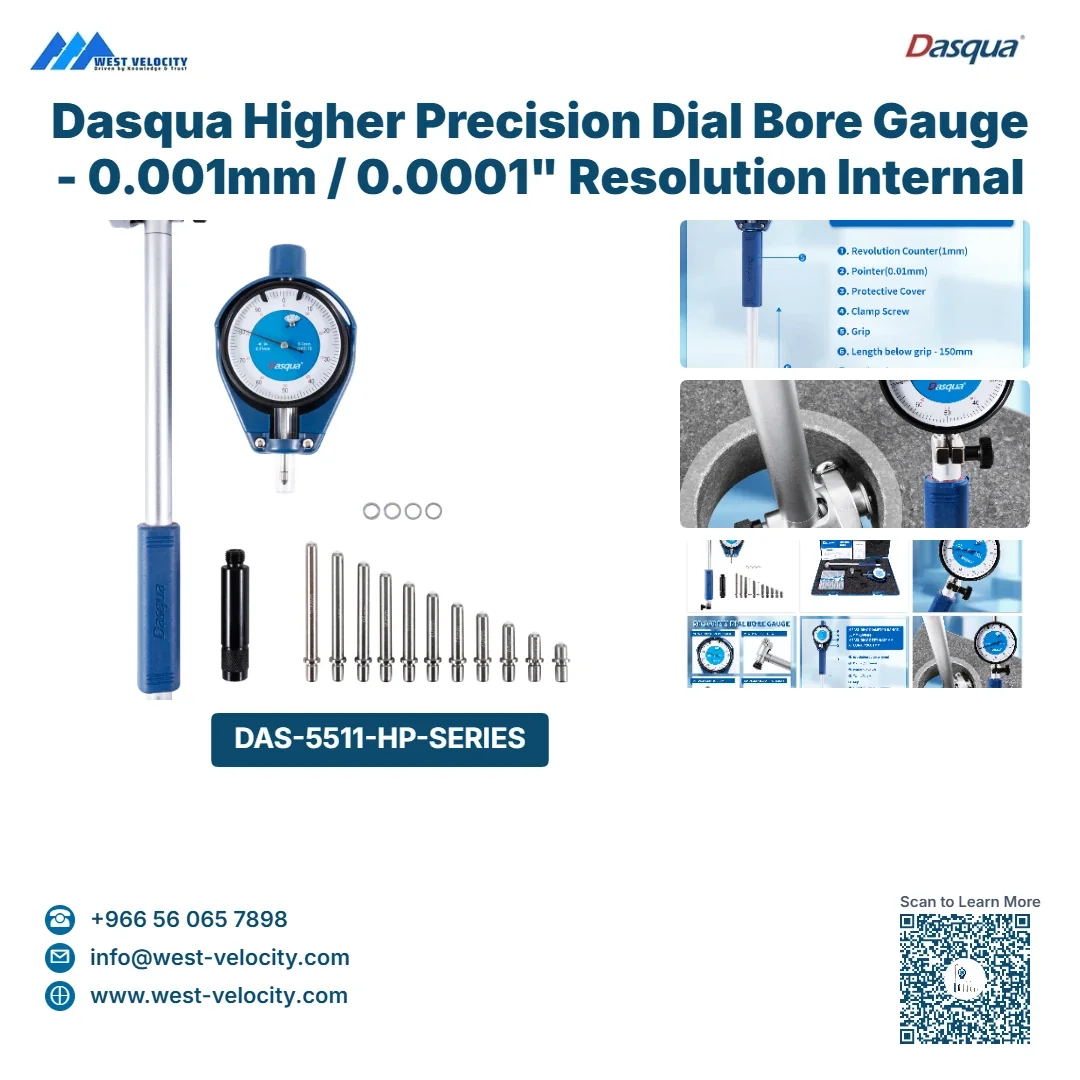

A professional-grade internal measuring instrument featuring an ultra-high resolution of 0.001mm (Metric) or 0.0001" (Imperial). Designed for detecting minute taper, ovality, and roundness in high-tolerance industrial components.

Product Information

SKU 5511-1130

Category Measuring and Layout Tool

Brand Dasqua

Lead Time Delivery Time:
2-3 weeks

Performance Characteristics

Measuring Range 4.00 - 450.00 mm

Operating Depth 400.00 mm

Resolution Accuracy 0.00 mm

Key Features

Explore the outstanding features of this product

0.001mm / 0.0001

Provides elite-level accuracy with an ultra-fine graduation of 0.001mm (metric) or 0.0001" (imperial) for measuring the tightest tolerances.

4-450mm Versatile Measuring Range

Enables inspecting a wide variety of bore sizes from small 4mm (0.24") up to large 450mm (16") cylinders for versatile applications.

Fine Adjustment Extension Rods

Includes extension rods and washers that enable quick and precise adjustments to select and lock in specific measuring ranges.

Interchangeable Carbide Anvil Tips

Equipped with durable, wear-resistant carbide-tipped anvils that can be interchanged to maintain measurement accuracy over time.

Ruggedized Dial Indicator Protection

The sensitive dial indicator is fully shielded by a solid, impact-resistant cover for durability in machining environments.

Up to 400mm Extended Reach

Allows for deep-bore inspections with operating depths available up to 400mm (16") for measuring internal dimensions.

Material Composition

Detailed breakdown of materials used in this product

Carbide

Not specified

Anvils/contact points material for superior wear resistance and long-lasting precision measurements.

Tool Steel

Not specified

Main body material for structural rigidity and durability in machining environments.

Composition Overview

Carbide

Not specified

Tool Steel

Not specified

Product Applications

Discover the various ways this product can be utilized

High-End Engine Building

Critical measurement of cylinder bores, main bearings, and connecting rods.

Metrology & Calibration

Serving as a secondary standard for internal diameter quality control.

Precision Aerospace Engineering

Verifying internal diameters of high-tolerance turbine components.

Precision Hydraulics

Inspecting valve bodies and high-pressure cylinders for roundness and taper.

Variations

Code	Range	Graduation	Depth
5511-1100	4-6	0.01	40
5511-1105	6-10	0.01	40
5511-1110	10-18	0.01	100
5511-1115	18-35	0.01	150
5511-1120	35-50	0.01	150
5511-1121	35-60	0.01	150
5511-1125	50-100	0.01	150
5511-1130	50-160	0.01	150
5511-1135	160-250	0.01	400
5511-1140	250-450	0.01	400
5512-6105	0.24-0.4"	0.0005"	1.57"
5512-6110	0.4-0.7"	0.0005"	4"
5512-6115	0.7-1.5"	0.0005"	6"
5512-6120	1.4-2.4"	0.0005"	6"
5512-6125	2-4"	0.0005"	6"
5512-6130	2-6"	0.0005"	6"
5512-6135	6-10"	0.0005"	16"
5512-6140	10-16"	0.0005"	16"

Variations

Code	Range	Graduation	Depth
5511-2105	6-10	0.001	40
5511-2110	10-18	0.001	100
5511-2115	18-35	0.001	150
5511-2120	35-50	0.001	150
5511-2125	50-100	0.001	150
5511-2130	50-160	0.001	150
5511-2135	160-250	0.001	400
5511-2140	250-450	0.001	400
5512-7105	0.24-0.4"	0.0001"	1.57"
5512-7110	0.4-0.7"	0.0001"	4"
5512-7115	0.7-1.5"	0.0001"	6"
5512-7120	1.4-2.4"	0.0001"	6"
5512-7125	2-4"	0.0001"	6"
5512-7130	2-6"	0.0001"	6"
5512-7135	6-10"	0.0001"	16"
5512-7140	10-16"	0.0001"	16"
